UANVM TANTO Elbit MILSPEC Gen 3 Thin Filmed White Phosphor

SKU: TANTO-ELBIT-WP Categories: ,
ITAR
This product is regulated by ITAR. It can only be shipped in the USA

$4,099.98

A minimalistic approach to the PVS-14, the Tanto drops the manual gain function and on-board IR illuminator in favor of weight savings and simplicity. Compatible with many standard PVS-14 accessories such as sac lenses, demist shields, and j-arms, the Tanto will be easy to configure to the user’s specific needs. One innovative feature of the Tanto is that two units can be mounted onto a proprietary bridge known as the Daisho. This allows the user to start with a single unit and add another later without the weight penalties associated with dual PVS-14s—instead, the dual Tantos and Daisho bridge form what is very close to a dedicated binocular system. As a bonus, Nocturn offers a LIFETIME no-questions-asked warranty.

OVERVIEW VIDEO

WHAT’S INCLUDED?

One SI/TANTO Night Vision Monocular; two lens caps; Steele Industries hard case; warranty card; quality control report; spec sheet.

TUBE SPECS

Our SI/TANTO Elbit Gen 3 White Phosphor Monocular:

ELBIT MILSPEC GEN 3 THIN FILMED WHITE PHOSHPOR

  • Milspec image intensifier
  • Auto Gated
  • High performance image intensifier
  • FOM 1800+ (This is the BARE minimum you can hand select or look at our ready to ship options for a more personal experience for FREE)

TUBE SELECTION

At Steele, we use the “big three” tube manufacturers; Photonis, Elbit, and L3Harris. Each tube model has its own unique performance characteristics and pricing, which means we have a tube to meet various performance needs and budgets.

Elbit image tubes are a great option for those that will primarily be operating in lower light conditions, but cannot justify the additional cost required for L3Harris. These mil-spec, thin-filmed tubes will offer exceptional performance for hikers, hunters, shooters, or anyone that will find themselves away from the ambient lighting found in urban areas. Elbit is regarded by many as the best “bang for your buck” given their cost to performance ratio.

Selecting an image tube brand isn’t the only decision to be made. Within each brand, specs and cosmetics will still vary tube to tube. Of course, if you want us to utilize our expertise and select on your behalf, we are happy to do so. However, most buyers want to hand select their own image tubes, which is why we list tube photos and specs for all of our in stock inventory. If you’re ordering on a lead time you can always put “hand select” in the order notes section as well to pick your tubes when they arrive to us from the manufacturer. It’s easy to go down the rabbit hole so to speak with specs, but to make it stress-free we will cover the specs we list, what they mean, and which specs we pay the most attention to.

For our in stock inventory, we list the center resolution (LP), SNR, EBI, Halo, and FOM.

Center resolution is much like resolution on a screen, the higher the better. However, for a headborne system, a resolution over 64 is indistinguishable to the naked eye. Therefore, just look for a resolution of 64+.

SNR, or Signal to Noise Ratio, is essentially low light resolution. It is the single most important spec, in our opinion, for determining low light performance. For Photonis and Elbit tubes, seek out an SNR of 27+ (they usually cap out around 33-34). L3Harris tubes tend to have higher SNR values across the board. If deciding on an L3Harris image tube, look for an SNR of 33+.

EBI, or Equivalent Background Illumination, is essentially the lowest light level that a tube can produce a usable image. Sounds important right? It is, but the importance is usually grossly overstated. The truth is, anything UNDER 2.5 will be just fine for 99% of users. The only exception is for those that will strictly be utilizing their device for astronomy. If that is the case, look for an EBI under 1.5.

Halo is the ring or bloom around a light source when viewed through an image tube. The lower the halo value, the smaller the bloom. Keep this value under 1. Note that Photonis doesn’t always provide halo values, but rest assured they routinely exhibit low halos from our experience.

FOM, or Figure of Merit, is obtained by multiplying center resolution by the SNR. We recommend ignoring this value when selecting a tube. Instead, examine its components separately as it doesn’t always accurately depict a tube’s performance.

To keep it short and sweet, pick the highest SNR tube available that is fairly clean, has a resolution of 64+, an EBI under 2.5, and a halo under 1. If you stick to this outline, you’ll end up with an image tube that is more than capable of performing in any situation you may find yourself in.

SPECIFICATIONS

Features:

  • Waterproof
  • Approximately 40 hours of battery life on a CR123
  • 10 year warranty and limited lifetime service

Assembled in house with our accredited ISO 9001:2015 process and procedures

TECHNICAL SPECIFICATIONS

 Field of View  40°
 Magnification  1x
 Diopter Adjustment  -6 to +2 Diopters
 Eye Relief  25mm
 Submersible  66 feet
 Objective Lens  27mm, f/1.2
 Focus Range  9.8″ to infinity
 Power Source  1 CR123 Size Battery
 Operation Time  40+ hours
 Weight  231 g (8.15 oz)



HAND SELECT

If you do not like any of our in stock offerings, and would like to order and hand select from a new batch of image intensifiers all you have to do is put “hand select” at checkout. What this does is when your order is ready to be built, we will give you a call to discuss tube options, as well as provide photos through the tubes.

RESTRICTIONS

This product is regulated by International Traffic in Arms Regulations and can not be shipped outside the USA.

You may also like…

  • Sale! 20231215 085409390 iOS
  • Sale! 20231214 091750510 iOS

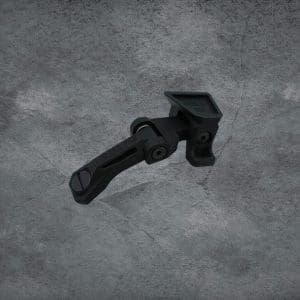

    Wilcox AN/PVS-14 Arm – No Switch
