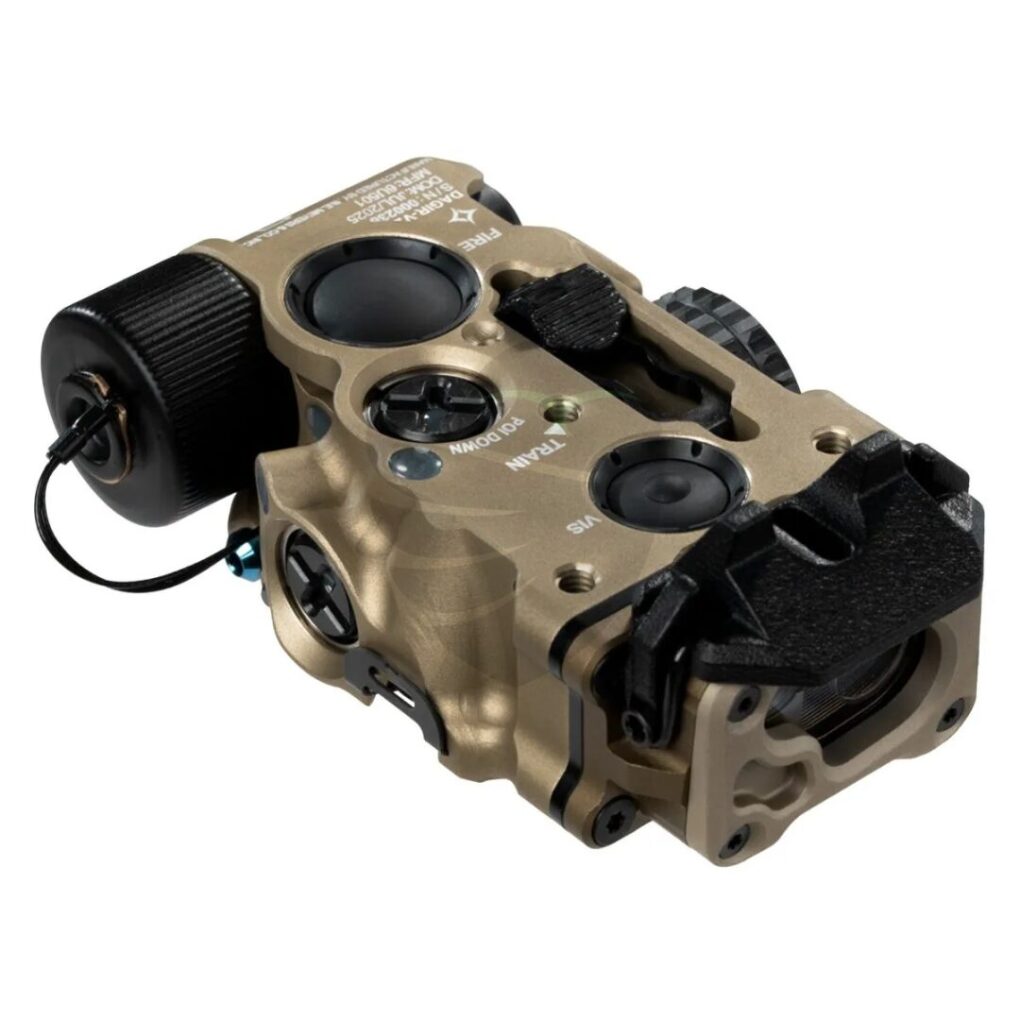

B.E. Meyers DAGIR®- V2 MULTI-PLATFORM ADVANCED LASER SYSTEM

SKU: DAGIR-V2-M01-FD01-K01-1 Categories: ,
ITAR
This product is regulated by ITAR. It can only be shipped in the USA

$4,250.98

The B.E. Meyers DAGIR V2 is a versatile, weapon-mounted NIR/Visible pointer with an integrated NIR illuminator built for demanding operational use. Featuring a powerful overbore 40 mW IR pointer and dual 350 mW VCSEL IR illuminators, it delivers exceptional output and clarity even in high ambient light and challenging photonic conditions. A dedicated VIS Override button allows instant activation of the visible pointer, regardless of current mode selection. With an intuitive human-machine interface, users can quickly adjust beam divergence and output without breaking position. Housed in a compact, environmentally sealed aluminum body, the DAGIR®-V2 is engineered for durability in the harshest environments.

Download Product Data Sheets

DAGIR-V2 Data Sheet

WHAT’S INCLUDED

One The B.E. Meyers DAGIR V2 Multi-Platform Advanced Laser System; Manual.

KEY FEATURES

Features:

  • Intuitive interface allows for quick and easy adjustment of output power and divergence settings.
  • VIS Override is a secondary button that immediately fires the visible pointer, overriding the current settings.
  • Illumination maintains a uniform beam pattern, free of artifacts across all divergence and power settings.
  • Adjustable divergence IR illuminator from 0.8° to 12°.
  • Adjustable power output across five modes.
  • Directly mounts to MIL – STD1913 rails.
  • User – friendly interface with ergonomic design.
  • Built to MIL – STD – 810H standards.

TECHNICAL SPECIFICATIONS

Material 6061-T6  Aluminum
Weight 7 oz
Power Source CR123 Lithium Battery
Laser Type Green 1mW-47mW
IR Illuminator 0.6mW-350mW VCSEL Technology
IR Laser 0.20mW-40mW VCSEL Technology
Dimensions 3.90″L x 1.00″H x 2.00″W
