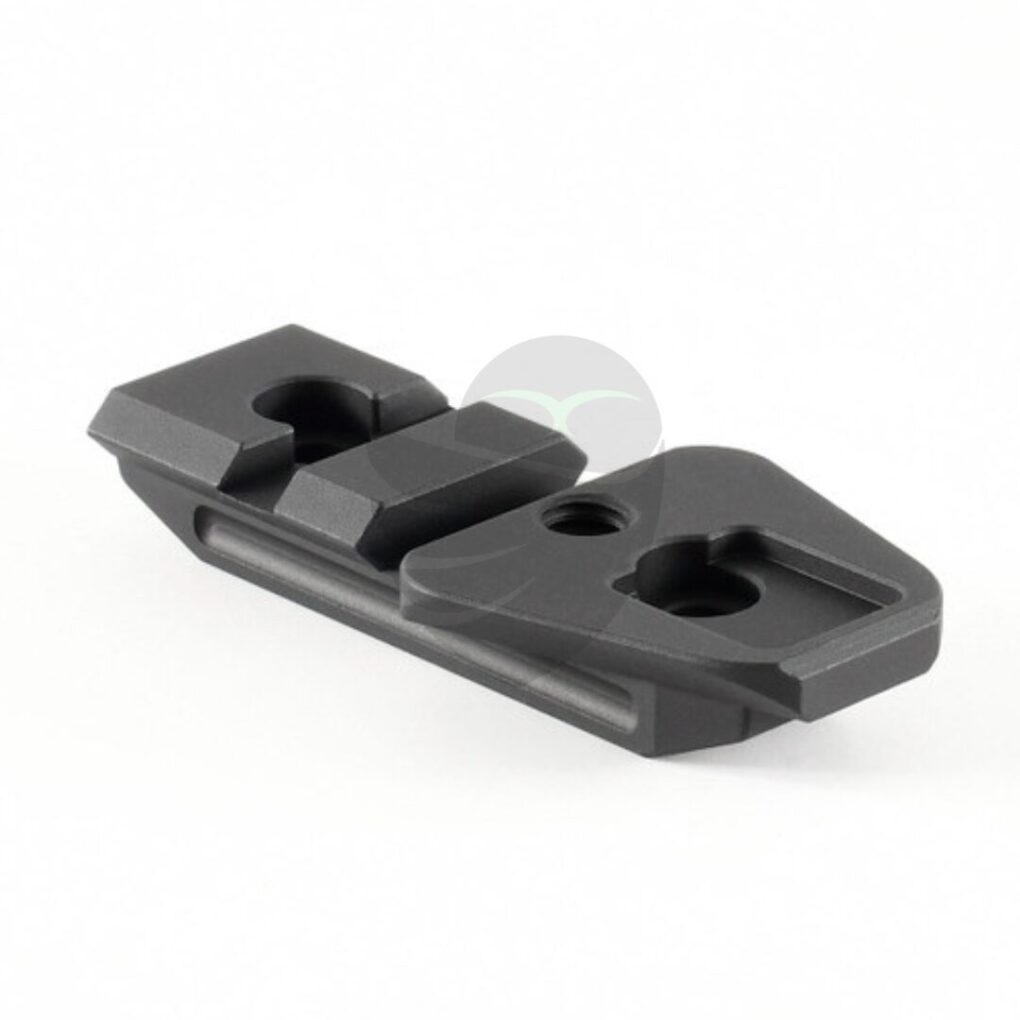

iRayUSA RICO MICRO PICTAIL Helmet/Weapon Shoe

SKU: IRAY-AC52 Categories: , ,
ITAR
This product is regulated by ITAR. It can only be shipped in the USA

$129.98

Currently Out Of Stock BUT can be back ordered

The PICTAIL mounting system integrates a traditional dovetail shoe used on helmet-mounted night vision devices with a MIL-STD-1913 Picatinny rail interface for weapon platforms, delivering enhanced precision and versatility without sacrificing compatibility. It interfaces with standard dovetail receptacles, while its specially engineered single-slot Picatinny rail pairs with the ADM MQD mount to provide an adjustable mounting footprint. In standalone optic mode, the system offers over 4.5 inches of rear offset, and when reversed for clip-on use, the rear offset shrinks to just 1.5 inches, requiring only four rail slots in front of a day optic, making it ideal for compact platforms such as SBRs and pistols. Developed in partnership with American Defense Manufacturing, the PICTAIL and MQD combine ADM’s proven Picatinny mounting technology with a lightweight, rapid-transition dovetail design to enable seamless transitions between helmet and weapon-mounted configurations.

WHAT’S INCLUDED

One RICO Micro PICTAIL Helmet/Weapon Shoe



SPECIFICATIONS

Features:

  • Combines a standard dovetail shoe (for helmet night-vision mounting) with a MIL-STD-1913 Picatinny rail
  • Compatible with standard dovetail receptacles used in helmet mount hardware
  • Includes a single-slot Picatinny rail that interfaces with ADM’s MQD mount
  • Works in tandem with the MQD mount to provide an adjustable footprint on Picatinny rails
  • Produces over 4.5 inches of rear offset in standalone optic mode when paired with the MQD mount
  • Shrinks rear offset to 1.5 inches when reversed for clip-on mode (with MQD)
  • Requires only 4 Picatinny rail slots in front of a day optic in clip-on mode
  • Built for faster helmet-to-weapon transitions in collaboration with American Defense Manufacturing (ADM)
  • Machined construction for precision and durability
  • Designed to maintain dovetail functionality on helmets while enabling secure, repeatable weapon mounting
  • Uses factory-specified torque limits for mounting screws
