OVERVIEW VIDEO
WHAT’S INCLUDED

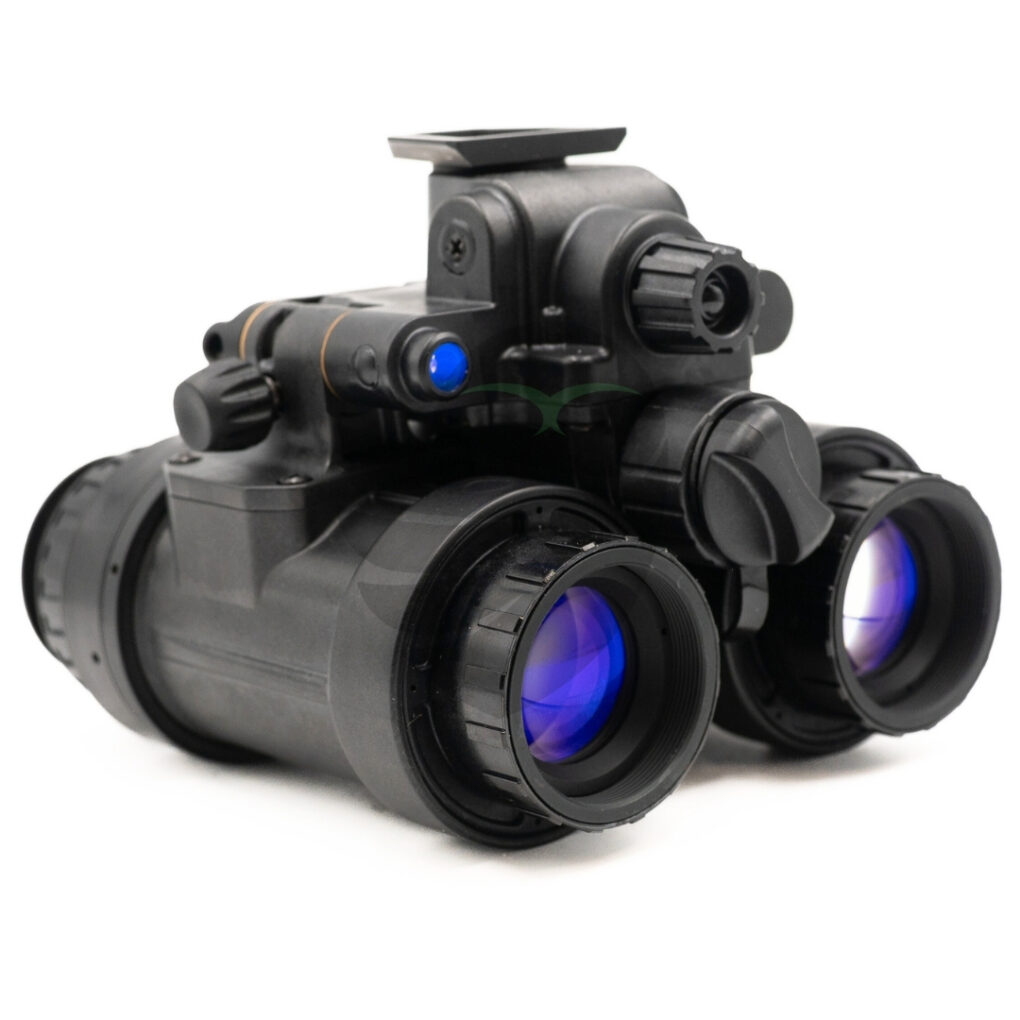

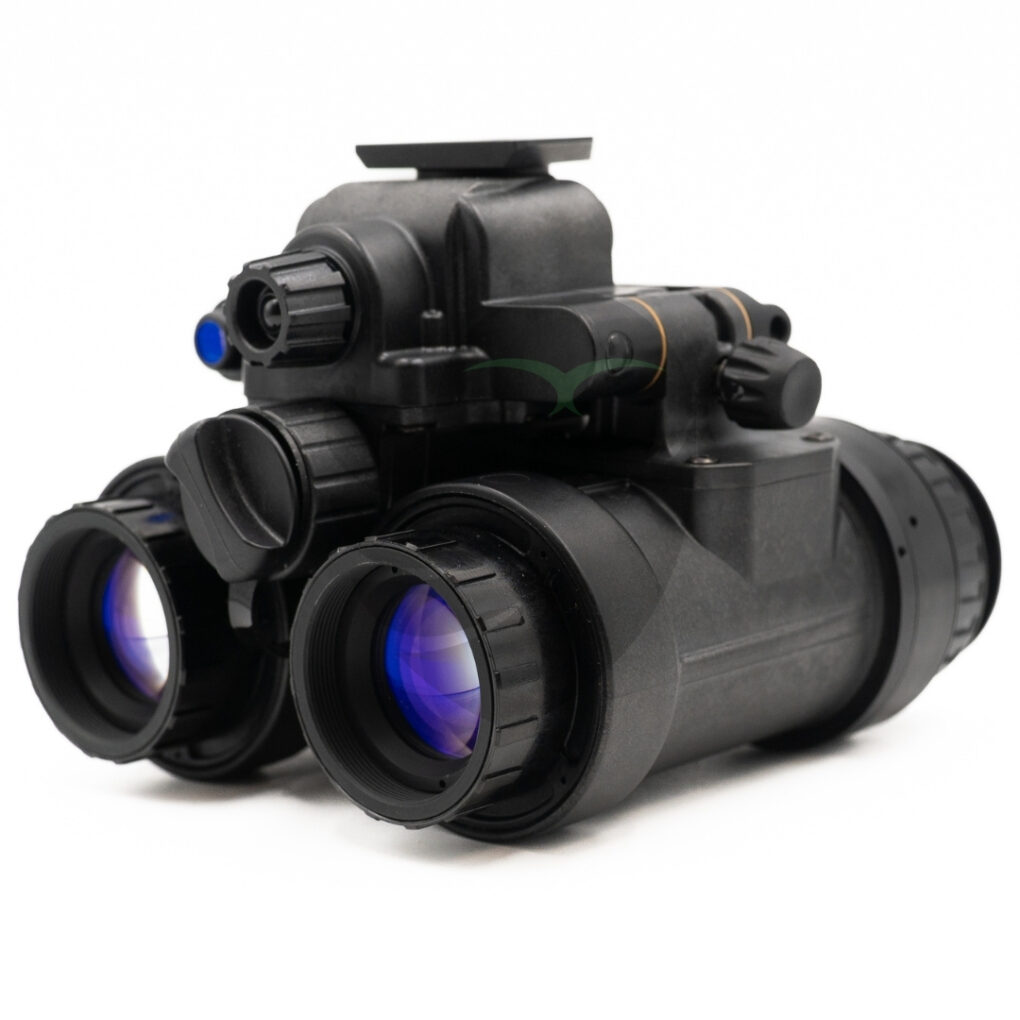

One L3Harris BNVD-1531 Night Vision Goggle; Bikini covers; Multicam soft bag; Battery pack and cable; Accessory kit; Spec sheets.
IMAGE INTENSFIER
L3Harris Unfilmed White Phosphor
- Gen 3 super gain tubes
- Auto gated
- Minimum FOM: 2,376
This device takes advantage of the manual gain capability of MX-11769 format tubes, allowing the user to manually adjust the device’s gain level. Please note that manual gain control does NOT take the place of automatic brightness control (ABC) which is present in all image tubes that we sell and regulates the image brightness without user input. These features work in conjunction to give the user the best image possible.
SPECIFICATIONS
Features:
- IR illuminator
- Adjustable diopters
- Fischer battery pack port
- Articulating housing
- Manual gain control
- External power via Fischer port
- Adjustable IPD stops
TECHNICAL SPECIFICATIONS
| Power Source | x1 AA Size Battery |
| Focus Range | 18″ To Infinity |
| Operation Time | Approximately 15 Hours On A Lithium Battery |
| Magnification | 1x |
| Field Of View | 40 Degrees |
| Diopter Adjustment | -6 To +2 |
| Eye Relief | 25MM (Standard Mil-spec Options) |
| Weight | 538g (Standard Mil-spec Optics) |
| Dimensions | 4.6″L x 3.6″H x 4.5″W |
| IR Illuminator | Built In |
| Water Resistance | Submersible To 66FT |
| IR Led & Low Battery Indicators | Yes |
| Intensifier Tubes | Compatible With MX-11769 & MX-10160 |
| Optics | Compatible With PVS-14 Style Eyepieces & Objectives |
HAND SELECT
If you do not see a tube that meets your requirements from the in stock offerings you can always opt for FREE hand selection when our next batch arrives. To do this, simply put “hand select” in the order notes at checkout. When your order is ready, we will give you a call to discuss tube options, as well as provide photos through the tubes.
RESTRICTIONS
ITAR (International Traffic in Arms Regulations) and EAR (Export Administration Regulations) Compliance Statement:
By ordering any product(s) from Steele Industries Inc (the “Site”), you certify that you, or third-party entities at your direction, will not sell, transport, ship or transfer outside the borders of the United States, nor to any foreign person*, any product(s) which are export-restricted by U.S. export-control law and regulation, without proper U.S. Government export authorization, licensing, and documentation.
Export-restricted items include, but are not limited to, firearms, ammunition, electronic equipment, certain gear and firearm accessories, weapon-mounted or handheld optical equipment including rifle or handgun scopes, night vision and night vision accessories, holographic sight systems, “red-dot” optics, thermal vision, and tactical lights and lasers, knives, and body armor including vests, helmets and shields.
Export, or attempt to export, any controlled or prohibited items outside of the U.S. without complying with U.S. export control regulations can result in severe civil and criminal penalties and/or constitute a federal crime. Steele Industries Inc. will not participate in any transaction, directly or indirectly, involving the illegal export or re-export of any prohibited items.
Under ITAR § 120.16 means “any natural person who is not a lawful permanent resident as defined by 8 U.S.C. § 1101 (a)(20) or who is not a protected individual as defined by 8 U.S.C. § 1324b(a)(3)”, and can mean “any foreign corporation, business association, trust, society, or any other entity or group that is not incorporated or organized to do business in the U.S., as well as international organizations, foreign governments, and any agency or subdivisions of government (e.g. diplomatic missions).”
All orders placed on our website require the customer to complete and sign an ITAR (International Traffic in Arms Regulations) form to ensure compliance, timely processing and shipment. Failure to comply with this requirement will result in order cancellation and may incur a 3% cancellation fee. If you have any questions or concerns regarding the necessary forms, please contact us at sales@steeleindinc.com for assistance.
