MBS Optics U.L.R Ultra Light Rugged Optics Set

SKU: N/A Categories: ,
ITAR
This product is regulated by ITAR. It can only be shipped in the USA

Price range: $349.98 through $699.98

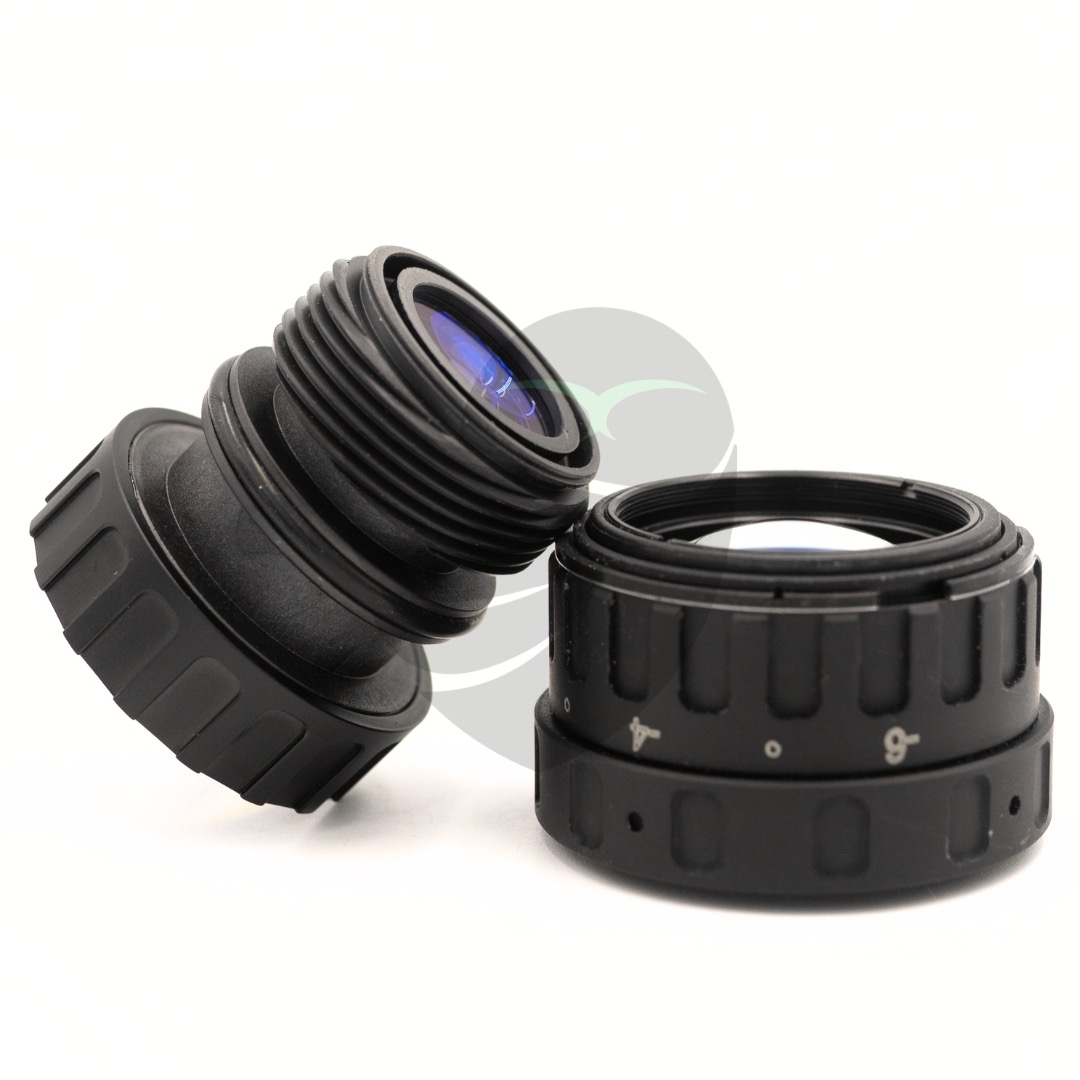

This MBS Optics eyepiece and objective optic set is designed for use with any housing that accepts standard PVS-14 style glass. Both the diopter and objective interfaces are reinforced with aluminum to improve durability and reduce the risk of damage from drops, which are the most common failure points on traditional optic sets. Despite the reinforced construction, the complete optic set weighs just 120g, making it a lightweight and rugged option for night vision systems.

WHAT’S INCLUDED

Monocular or Goggle set of MBS Optics U.L.R Ultra Light Rugged Optics Set (1 or 2 Eyepiece Assembly & 1 or 2 Objective Lens); Monocular or Goggle set of eyepiece locking rings.

KEY FEATURES

Features:

  • Ultra Lightweight
  • Aluminum Objective Sleeve & Aluminum Diopter
  • Maximum Durability Without Extra Weight

EYEPIECE TECHNICAL SPECIFICATIONS

Resolution 72 lp/mm
System Distortion 5%
Effective Focal Length 25.1mm +/- 0.5mm
Field Of View 40°
Eye Relief 29mm
Spectral Range Visible Light
Weight 88g

OBJECTIVE TECHNICAL SPECIFICATIONS

Resolution 72 lp/mm
System Distortion 5%
Effective Focal Length 25.1mm +/- 0.5mm
F # F/1.23
Field Of View 40°
Spectral Range 530-910nm
Weight 45.5g
