HAND SELECT PROCESS
Our Hand Select program allows you to choose the exact image intensifier before it is built into your system. Customers may prioritize specific characteristics such as SNR, EBI, halo, or overall balance based on their intended use. Selecting “Yes” from the dropdown will prompt a representative to contact you with available tube options. Customers who opt out of Hand Select will receive image intensifiers that meet or exceed the minimum performance standards for the selected tube category.
OVERVIEW VIDEO
WHAT’S INCLUDED

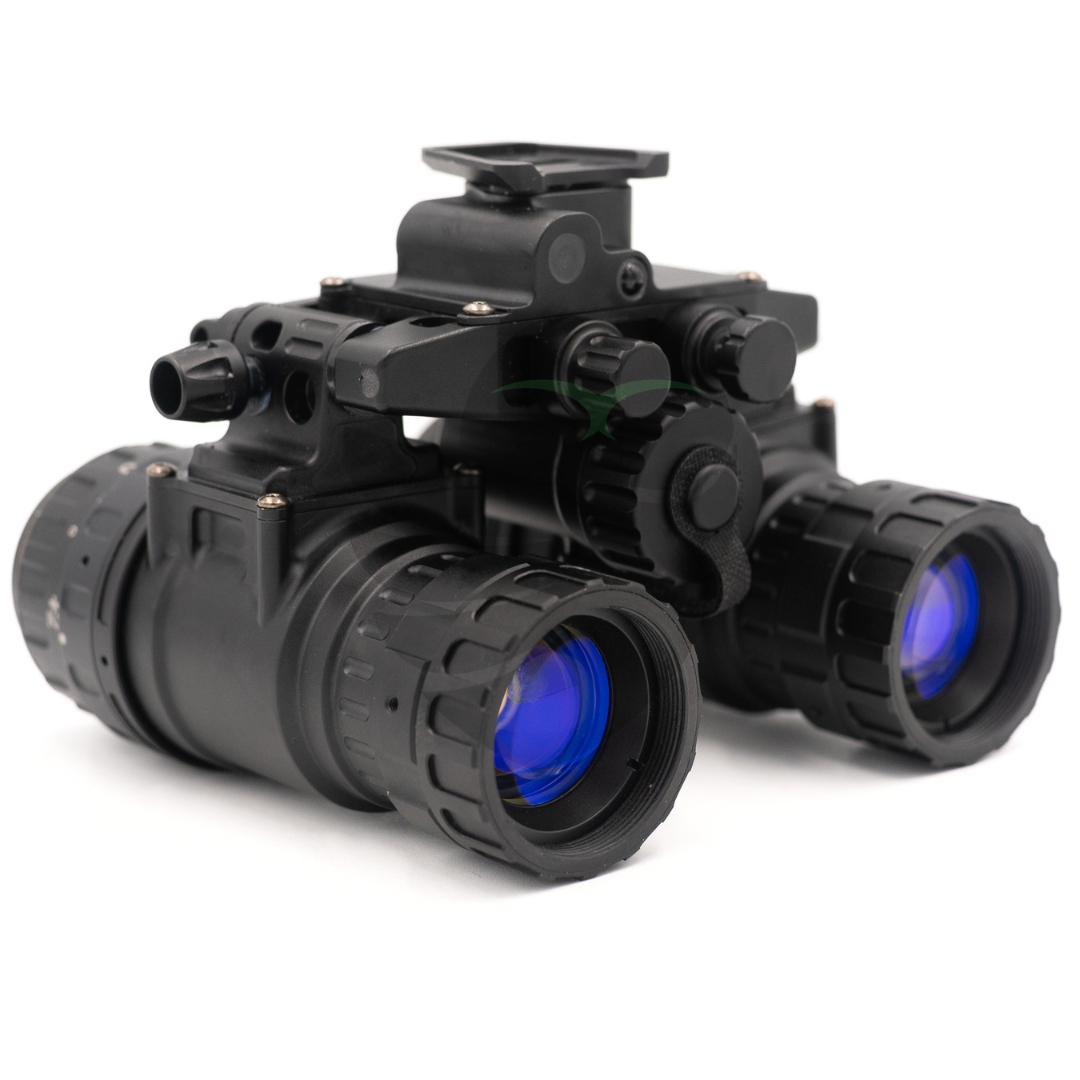

One Steele Industries NightHawk-MG Manual Gain Night Vision Goggle; Two objective lens caps; Two eyepiece covers; Steele Industries hard case; Warranty card; Quality control report; Spec sheets.
IMAGE INTENSFIER OPTIONS
ELBIT COMMERICAL SPEC THIN FILMED WHITE PHOSPHOR
- Gen 3 white phosphor
- Auto gated
- Minimum FOM: 1,536
ELBIT MIL SPEC THIN FILMED WHITE PHOSPHOR
- Gen 3 white phosphor
- Auto gated
- Minimum FOM: 2,000
L3 UNFILMED WHITE PHOSPHOR
- Gen 3 white phosphor
- Auto gated
- Minimum: 1540-2448+ (depending on selection)
This device takes advantage of the manual gain capability of MX-11769 format tubes, allowing the user to manually adjust the device’s gain level. Please note that manual gain control does NOT take the place of automatic brightness control (ABC) which is present in all image tubes that we sell and regulates the image brightness without user input. These features work in conjunction to give the user the best image possible.
KEY FEATURES
Features:
- Articulating housing
- Manual gain control
- Independent pod shutoff
- Onboard IR illuminator
- External power via LEMO port
- Adjustable IPD stops
- 7075-T6 aluminum construction
- Lifetime no questions asked housing warranty
Assembled in house with our accredited ISO 9001:2015 process and procedures
TECHNICAL SPECIFICATIONS
| Power Source | x1 CR123 Size Battery |
| Focus Range | 9.8″ To Infinity |
| Operation Time | Approximately 25 Hours On A Lithium Battery |
| Magnification | 1x |
| Field Of View | 40 Degrees |
| Interpupillary Adjustment | 55mm to 80mm |
| Diopter Adjustment | -6 To +2 |
| Eye Relief | 25MM (Standard Mil-spec Options) |
| Weight | 560g (Standard Mil-spec Optics) |
| Dimensions | 4.5″L x 3.5″H x 4.5″W |
| IR Illuminator | Built In |
| Water Resistance | Submersible To 66FT |
| IR Led & Low Battery Indicators | Yes |
| Intensifier Tubes | Compatible With MX-11769 & MX-10160 |
| Optics | Compatible With PVS-14 Style Eyepieces & Objectives |
